We are supplying Complete Green House Structure material (100% materials) Kit at any place. We are also doing exports of these structure materials. We are the only one company that is exporting green house structure materials from INDIA to other countries.
We are also supplying Green/Shad Net House Structure Materials and it’s Parts also, as shown below:

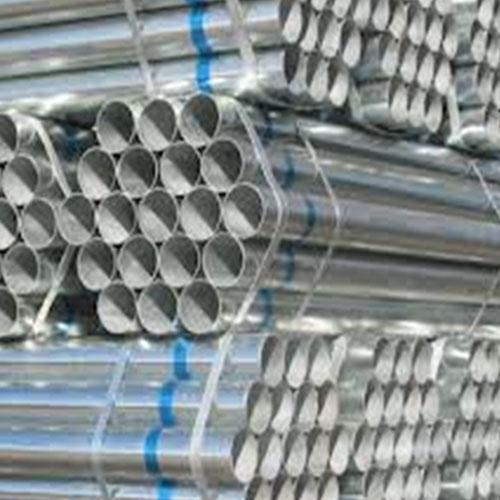

- 2mm thick G.I. Pipes:
- Main Column: 6500 / 7000 mm long = 65 nb. ( 76 mm outside dia)
- Secondary Column: 4000 / 4500 mm long = 65 nb. ( 76 mm outside dia)
- Bottom Chord: 8000 mm long = 50 nb. ( 60 mm Outside dia)
- Top Chord: 6500 & 6000 mm long = 32 nb. ( 42 mm Outside dia)
- Top Purlin: 4000 mm long = 40 nb. ( 48 mm Outside dia)
- Gutter Purlin: 4000 mm long = 32 nb. ( 42 mm Outside dia)
- Corridor: 5000 mm long = 40 nb. ( 48 mm Outside dia)
- Curtain Shaft: 6000 mm long = 25 nb. ( 33 mm Outside dia)
All GI pipes are standard quality with ISI(1239)Trade mark.

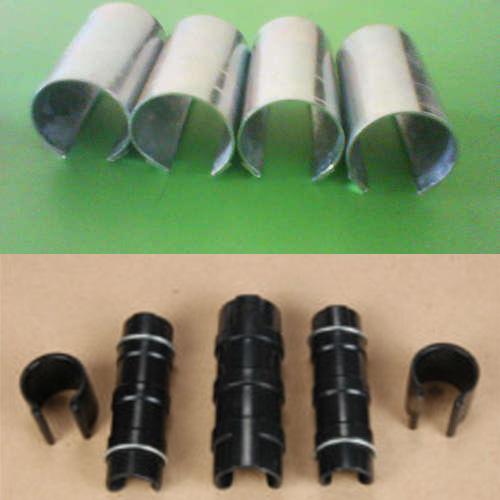

- 2mm thick G.I. Clamps:

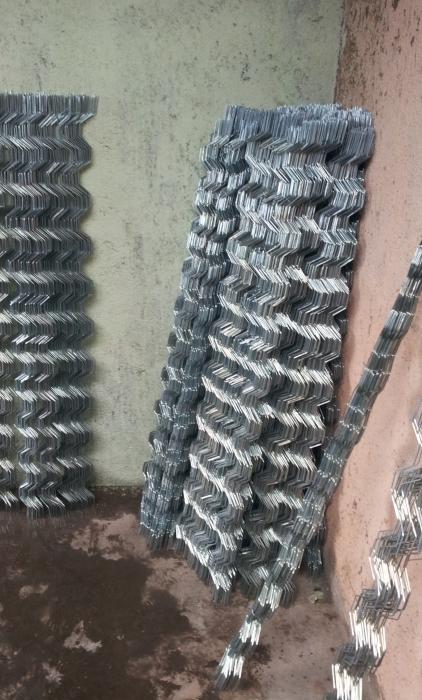

- C – Type Aluminum Profiles & Zigzag Spring lock wire zinc plated will be used for polythene/Shadnet fitting:

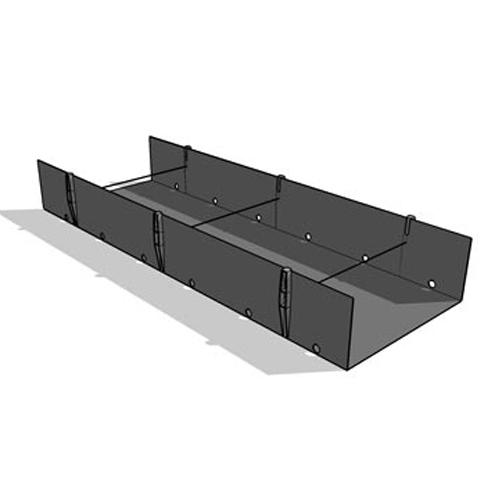

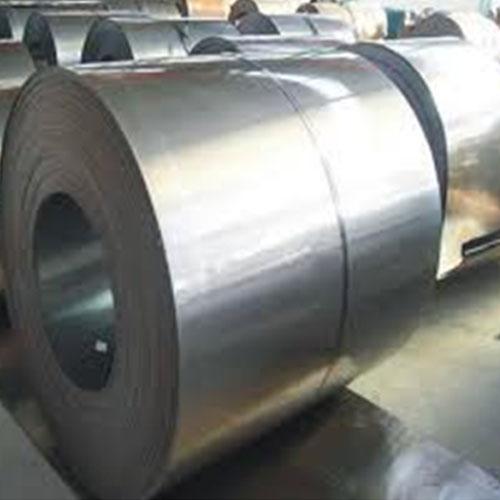

- Trapezoidal shape joint less gutter will be made from 500mm wide & 1.5mm thick GI Coil:

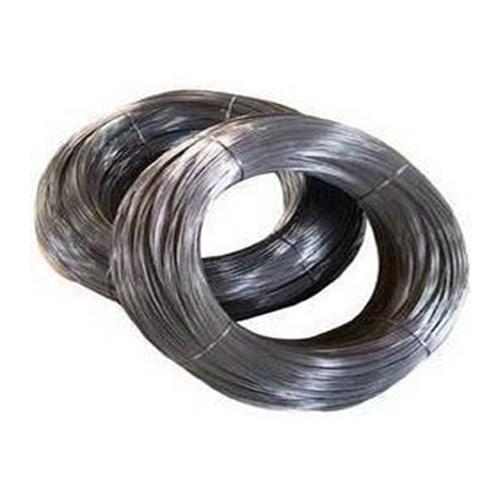

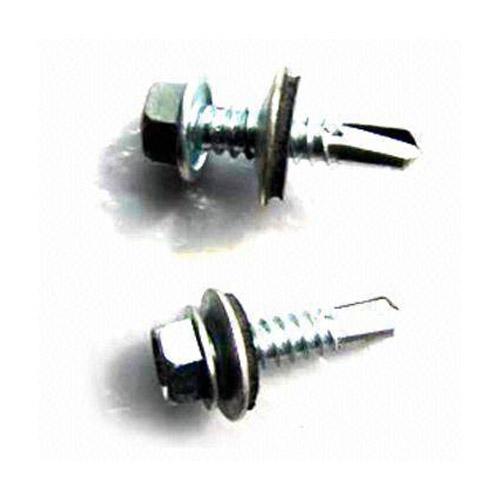

- Total structure will be assembled with M6 & M10 nut - bolts with the help of various clamps, Joints, Pulley and wire which are cold galvanized:

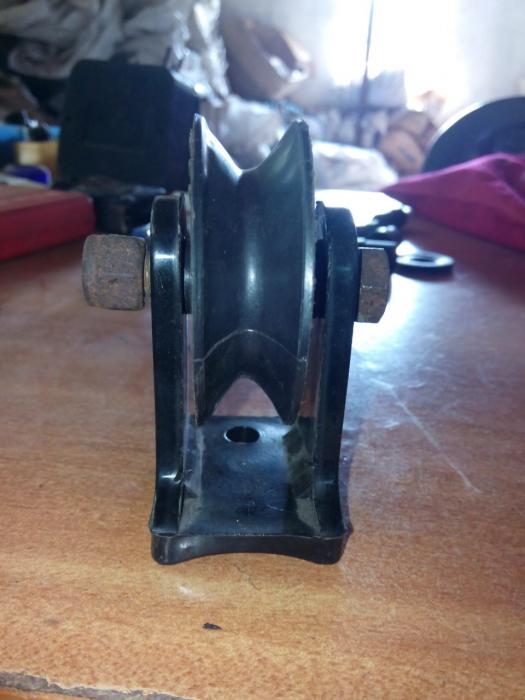

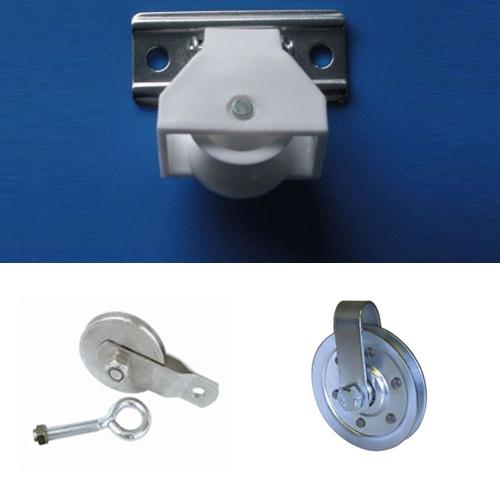

- Chain Pulley for operating Curtain Windows:

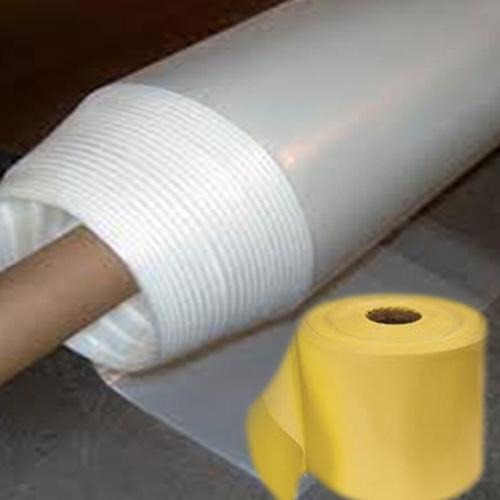

- 200 micron UV stabilized imported Polythene, Make Ginegar Plastic Products, Israel (205N):

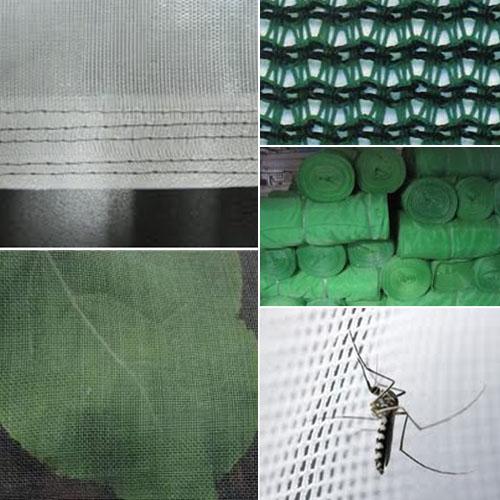

- Insect 40 Mesh or 35% Shad Net below curtain:
- Shad Net 50% at top side area:

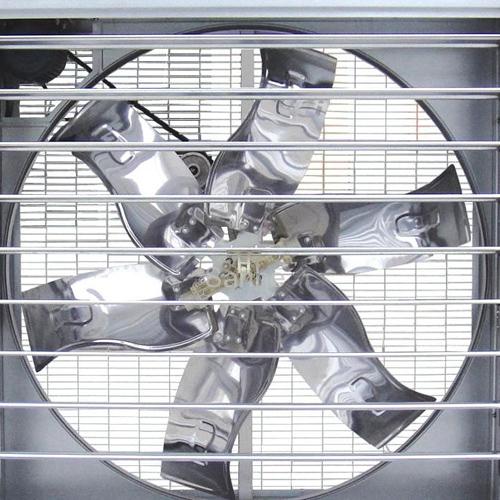

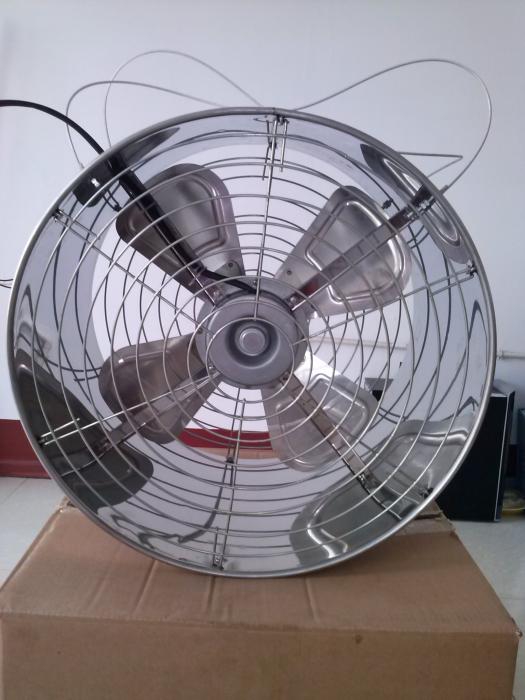

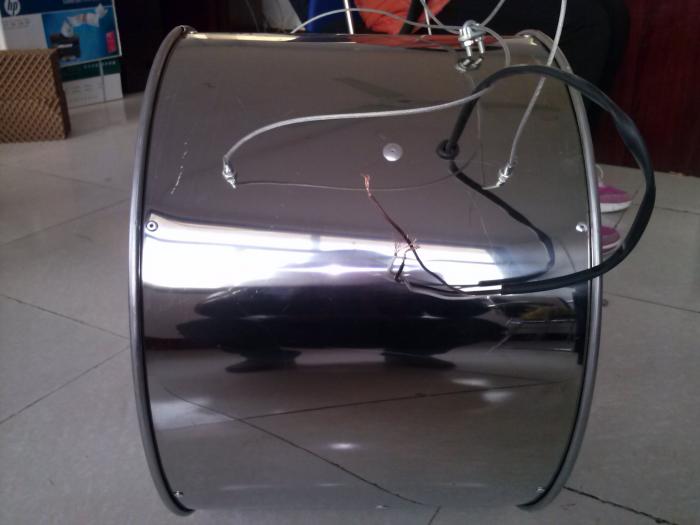

- 900mm Air circulating fan is an economical and the smartest cooling system available for Greenhouses and other such cooling needs. It has a unique design which consists of a high speed fan with GI powder coated finish enclosure.
It is so economical and so user-friendly that it can be used by anybody from a farmer to a planting enthusiast.
Features:
• Easy to operate
• Ceiling hanging
• Single Phase
• SS blades
• GI protection mess
• Available in various sizes— 12”/18”/24” f
